Metal Expanded High Ribbed Formwork Galvanized Rib Lath
Manufacturer

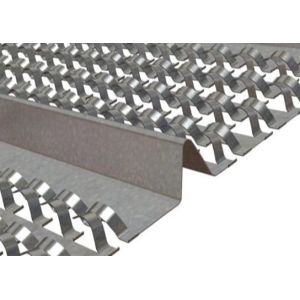

Galvanized rib lath formwork basic information
Galvanized rib lath formwork is manufactured from hot dipped
galvanized steel sheets.Because its meshes and U patterns.It has
better anti-stress capability and forming flexibility than normal
metal lath.This product has excellent engineering
quality,construction security and widely used in building
construction to form retaining walls,columns,stop ends,construction
joints and used to support slab flooring.
| Thickness(mm) | Weight(kg) | Width(mm) | Length(mm) | Rib height(mm) | Rib distance (mm) |
| 0.21 | 1.7 | 450 | 2200 | 14-20 | 90 |
| 0.23 | 1.9 | 450 | 2200 | 14-20 | 90 |
| 0.3 | 2.48 | 450 | 2200 | 14-20 | 90 |
| 0.35 | 2.9 | 450 | 2200 | 14-20 | 90 |
| 0.4 | 3.3 | 450 | 2200 | 14-20 | 90 |
| 0.45 | 3.7 | 450 | 2200 | 14-20 | 90 |
| 0.5 | 4.1 | 450 | 2200 | 14-20 | 90 |
Galvanized rib lath feature
1. Exempt from disassembly
2. Crack resistance
3. Corrosion resistance
4. Strong toughness
5. Skid resistance
The advantages of our factory
1. Rich experience production team
Our company was established in 2000,and it has 5000sqm production
workshop.Hundreds of skilled technicians.Dozens of production and
processing lines.We have many years of experience in the wire mesh
field.
2. Professional quality inspection system
We have a strict quality inspection system and a professional
testing team.we guarantee product quality.
3. Perfeect service system
24 hours on line service
Free samples if stocked
Quality problem we could accept the products return
Competitive price with superior higher quality products.
Professional team to solve all your questions
Galvanized rib lath application
It is widely used in tunnels bridges,valve basement systems,sewage
systems,subways,retaining walls,nuclear powder
plant,shipyards,water pools and marine engineering works and high
rise building projects and nong-regular or bending pattern etc.As
concrete permanent assembly free formwork.

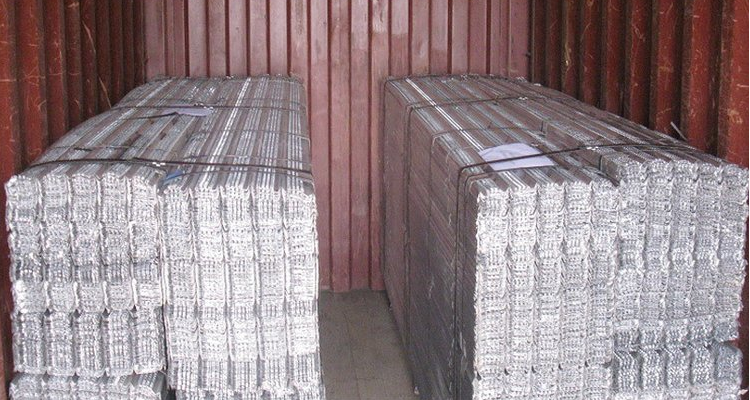

Galvanized rib lath packing detail
10 / 20 / 25 pcs per bundle,and 500 pcs per pallet by iron pallet
and PVC films
